The what I welded today (/whenever) thread (pics please)
Post Reply
Warrenh
  • Posts:
  • Joined:
    Thu Apr 27, 2017 12:31 pm

Leaning post for a poling platform on a flats boat.

Sent from my SCH-I545 using Tapatalk
Top
Poland308
  • Posts:
  • Joined:
    Thu Sep 10, 2015 8:45 pm
  • Location:
    Iowa

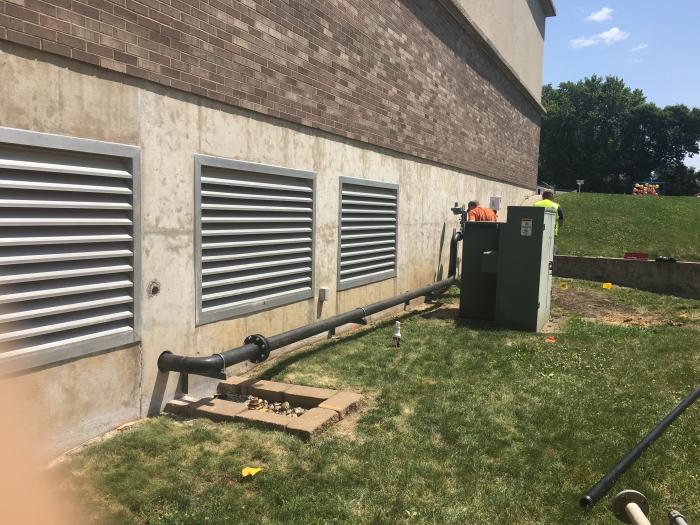

New gas service at one of the local schools. Gas provider set the new meter and I ran new pipe into the building. Only had a 4 hour window for actual shut down.
Attachments
I have more questions than answers

Josh
Top
Coldman
  • Posts:
  • Joined:
    Mon Dec 15, 2014 2:16 am
  • Location:
    Oz

4hrs that's crazy man. You wouldn't have had time to scratch !


Sent using Tapatalk
Flat out like a lizard drinkin'
Top
Poland308
  • Posts:
  • Joined:
    Thu Sep 10, 2015 8:45 pm
  • Location:
    Iowa

Fortunately I was able to do most of the work ahead of time. the only thing left on shutdown day what's to bolt up the last 4 inch flange and do the two welds on the tee.
I have more questions than answers

Josh
Top
Rick_H
  • Posts:
  • Joined:
    Sat Feb 08, 2014 1:50 pm
  • Location:
    PA/MD

Made a nice adjustable engine support while I swap the junk auto out of my TDI Jetta. A few pics of some oher stuff I'm building...
Attachments
Tooling storage cabinet I'm building
Tooling storage cabinet I'm building
Oil pan repair
Oil pan repair
I weld stainless, stainless and more stainless...Food Industry, sanitary process piping, vessels, whatever is needed, I like to make stuff.
ASME IX, AWS 17.1, D1.1
Instagram #RNHFAB
Top
User avatar
  • Posts:
  • Joined:
    Sun Jan 15, 2017 1:08 am

Otto Nobedder wrote:
5th Street Fab wrote:... I finally got a bottle of helium at home...

Sent from my SM-G920V using Tapatalk
Sweet!
I have the incredibly rare blessing of completely unlimited access to helium. One of our clients provides whatever we ask for because I use it in leak detection.

Steve
Lucky man! I got to finally use some at work today. I'm hooked. Now if only they would get it for everyday use!

Sent from my SM-G920V using Tapatalk
Top
User avatar
  • Posts:
  • Joined:
    Thu Jun 15, 2017 4:42 pm

Today i made two simple cordless drill holders and weld four adjustable legs for an assembly table made for line assembly of kitchen ovens. All make with 304 stainless steel scarp from ovens productions, the square tube for the legs are just 1mm thickness tig welded 8-)
Attachments
Top
User avatar
  • Posts:
  • Joined:
    Sun Jan 15, 2017 1:08 am

Last 2 weeks or so. Happy Father's day
















Sent from my SM-G920V using Tapatalk
Top
BigD
  • Posts:
  • Joined:
    Thu Jan 07, 2016 1:56 pm

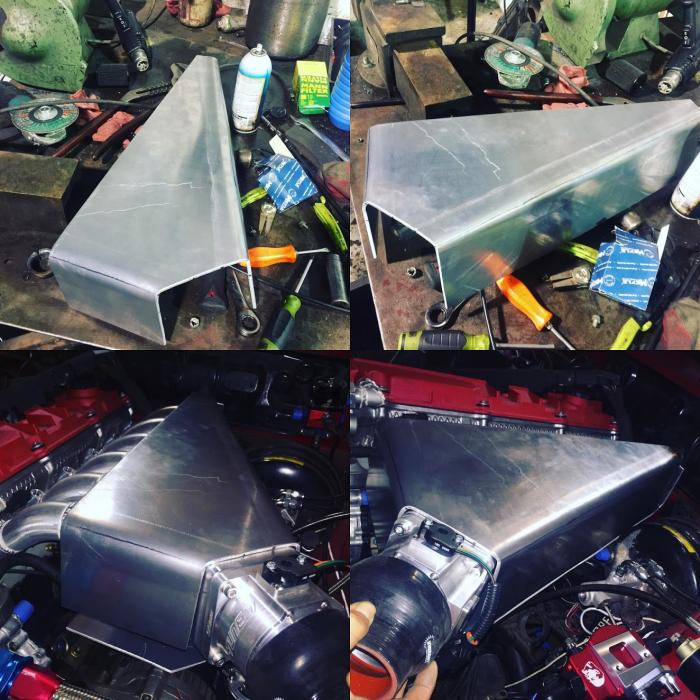

This was terrifying but so exciting! I posted earlier the beginnings of this, now it's all done, just need to add some sensors and pressure references, maybe a brace to the block. Last week I finally got off my ass and bought the plenum metal, and went to my friend's shop with a big press with my angle and rod to bend it. It worked well with the experiment with the coolant tank so I was cautiously optimistic. But even with 3003, it is just too much length with a single pressure point. The 1.5" solid aluminum bar bent before making much of an impression on the sheet (3/16" thick). I called several audibles, one was a steel jack handle, that crushed. Finally we found a 1.5" solid STEEL bar, I cut it to length and that finally worked. It almost seemed like it wasn't going to, it was bending a lot but wasn't yielding and when it bottomed out in the angle, it straightened out the bend. PSI is a bitch, I'm from an RC airplane model background and I should have an appreciation for load distribution but it's still hard to picture intuitively.

Alls' well that ends well, I'm SUPER stoked with the end result, I was cautiously optimistic that my skill level was now where it needs to be but I always tend to attempt things when they're at least a notch outside of my comfort zone and sometimes ability but that's what makes it fun...
intake manifold 1.JPG
intake manifold 1.JPG (67.72 KiB) Viewed 3877 times
intake manifold 2.JPG
intake manifold 2.JPG (91.87 KiB) Viewed 3877 times
intake manifold 3.JPG
intake manifold 3.JPG (66.36 KiB) Viewed 3877 times
intake manifold 4.JPG
intake manifold 4.JPG (95.62 KiB) Viewed 3877 times
Top
Farmwelding
  • Posts:
  • Joined:
    Thu Mar 10, 2016 11:37 pm
  • Location:
    Wisconsin

That looks fancy and like you did a heck a job welding that all out.
A student now but really want to weld everyday. Want to learn everything about everything. Want to become a knower of all and master of none.
Instagram: @farmwelding
Nick
Top
Poland308
  • Posts:
  • Joined:
    Thu Sep 10, 2015 8:45 pm
  • Location:
    Iowa

D that looks nice and clean!
I have more questions than answers

Josh
Top
BigD
  • Posts:
  • Joined:
    Thu Jan 07, 2016 1:56 pm

Thanks a lot guys!
Top
Gene.243
  • Posts:
  • Joined:
    Sat Sep 27, 2014 8:43 pm
  • Location:
    Southwest Oklahoma

I put a lot of effort into today's welding.
Attachments
Top
Rick_H
  • Posts:
  • Joined:
    Sat Feb 08, 2014 1:50 pm
  • Location:
    PA/MD

My filler tooling cabinet is complete finally and out on the floor.
Attachments
I weld stainless, stainless and more stainless...Food Industry, sanitary process piping, vessels, whatever is needed, I like to make stuff.
ASME IX, AWS 17.1, D1.1
Instagram #RNHFAB
Top
Coldman
  • Posts:
  • Joined:
    Mon Dec 15, 2014 2:16 am
  • Location:
    Oz

Beautiful work as usual


Sent using Tapatalk
Flat out like a lizard drinkin'
Top
Poland308
  • Posts:
  • Joined:
    Thu Sep 10, 2015 8:45 pm
  • Location:
    Iowa

How many times have you had to patch the flighting on those augers? Nice work.
I have more questions than answers

Josh
Top
User avatar
  • Posts:
  • Joined:
    Thu Jun 15, 2017 4:42 pm

some practice with an aluminum box :P Image
Top
User avatar

crimas wrote:some practice with an aluminum box :P
Nice looking welds
Richard
Website
Top
jernigan78
  • Posts:
  • Joined:
    Thu Apr 20, 2017 4:20 pm

Finished a new welding positioner project that I have been working with a local machine shop on. Ran some tests, works well. Played around last night running some autogenous welds with the torch strapped to my steady-rest. These were done at 2pps. Different amp settings for the different spots. I guess its a pen holder for my desk at work. haha.
Attachments
Top
User avatar

jernigan78 wrote:Finished a new welding positioner project that I have been working with a local machine shop on. Ran some tests, works well. Played around last night running some autogenous welds with the torch strapped to my steady-rest. These were done at 2pps. Different amp settings for the different spots. I guess its a pen holder for my desk at work. haha.
Looks great, would like to know more about your rotator build
Richard
Website
Top
User avatar
  • Posts:
  • Joined:
    Mon Feb 09, 2015 4:48 pm
  • Location:
    St. Johns, Michigan

Awesome looking beads.. :)
Pete



Esab SVI 300, Mig 4HD wire feeder, 30A spool gun, Miller Passport, Dynasty 300 DX, Coolmate 4, Spectrum 2050, C&K Cold Wire feeder WF-3, Black Gold Tungsten Sharperner, Prime Weld 225
Top
GreinTime
  • Posts:
  • Joined:
    Fri Nov 01, 2013 11:20 am
  • Location:
    Pittsburgh, PA

Double post.
Last edited by GreinTime on Fri Jun 23, 2017 3:05 pm, edited 1 time in total.
#oneleggedproblems
-=Sam=-
Top
GreinTime
  • Posts:
  • Joined:
    Fri Nov 01, 2013 11:20 am
  • Location:
    Pittsburgh, PA

Some aluminum on some intercoolers, and some titanium from Ticon in one of their sample kits! ImageImageImage

Sent from my VS995 using Tapatalk
#oneleggedproblems
-=Sam=-
Top
User avatar
  • Posts:
  • Joined:
    Thu Dec 26, 2013 12:41 am
  • Location:
    Laredo, Tx

The titanium came out nice! Sucks having to wait for it to cool down though.
Top
GreinTime
  • Posts:
  • Joined:
    Fri Nov 01, 2013 11:20 am
  • Location:
    Pittsburgh, PA

Oscar wrote:The titanium came out nice! Sucks having to wait for it to cool down though.
The whole thing was done consecutively alternating joint to joint. I think it's 4" sections maybe?

Sent from my VS995 using Tapatalk
#oneleggedproblems
-=Sam=-
